Adhesive tape slitting machine
Home > Adhesive tape slitting machine

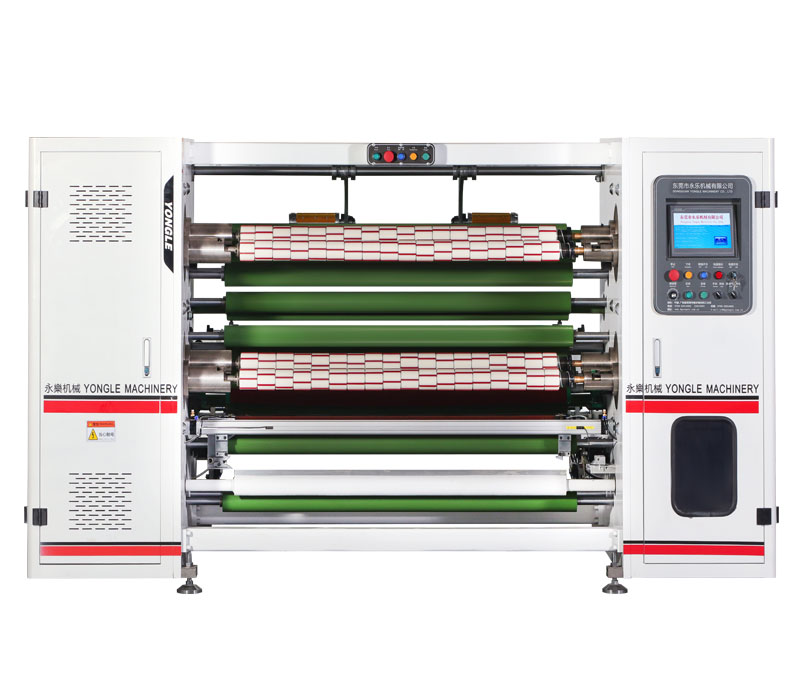

YL-216 Fully Automatic BOPP Tape Slitting Machine
Application: For slitting and rewinding Bopp adhesive tape.
Features:
1. Centralized touch screen control, easy and convenience for worker to operate.
2. The edge of tape's rewinding can move to left and right, saving the time of exchange the rewinding edge and improves the efficiency.
3. Adopt the pneumatic break system, machine stops on time and rewinding the tape with correct length.
4. The flatted roller adpots the arch structure to eliminate the wrinkling during the transiting process.
5. With sound proof cover to reduce the noise at the unwinding part, to creat the ideal working space(Option term).
6. Hydraulic -oil jumbo roll feeding structure, can loading the material roll fastly and reduce labor working intensity.(Option term).
7. Machine with auto labeling function, improves the efficiency.(Option term)
8. After finished rewinding, two rewinding shafts exchange automatically, machine non-stop working, and with auto labeling function.
Features:
1. Centralized touch screen control, easy and convenience for worker to operate.
2. The edge of tape's rewinding can move to left and right, saving the time of exchange the rewinding edge and improves the efficiency.
3. Adopt the pneumatic break system, machine stops on time and rewinding the tape with correct length.
4. The flatted roller adpots the arch structure to eliminate the wrinkling during the transiting process.
5. With sound proof cover to reduce the noise at the unwinding part, to creat the ideal working space(Option term).
6. Hydraulic -oil jumbo roll feeding structure, can loading the material roll fastly and reduce labor working intensity.(Option term).
7. Machine with auto labeling function, improves the efficiency.(Option term)
8. After finished rewinding, two rewinding shafts exchange automatically, machine non-stop working, and with auto labeling function.
- Product Detail
- Inquiry
Technical data:
Width
1300mm
Unwind O.D
600MM
Rewind O.D
280MM-4 Shafts, 300mm-2 shafts
Minimum Slitting width
12MM
Inner Size of Paper core
76.2MM
Voltage
220V/380V/415V
Power
6KW
Speed
0-260M/MIN
Dimension
2300 X 1400 X1500 MM
