Yl-701-A Fully Automatic Cutting Machine with Sound Cover

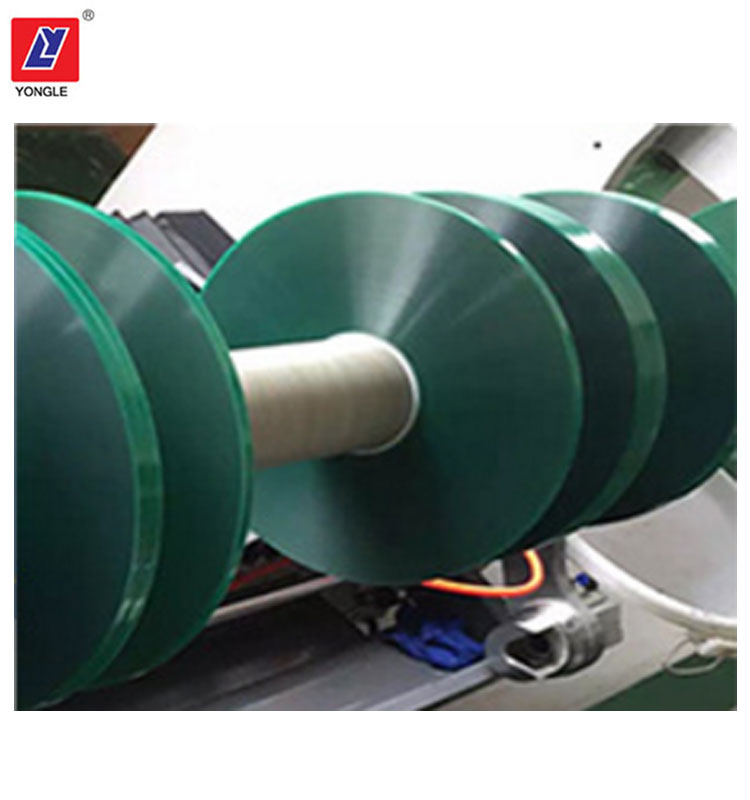

Application:This machine is mainly for cutting PVC,PE,PET Protective Film,Kraft Paper,Masking Paper,Foam Tape,EVA and Electrical Adhesive Tape 3M, BEMIS, OPP,Mylar,Kapton, etc.
Features:
1.PLC control system and touch screen,easy to operate for every workers,also improves the quality of finished product.
2.Can set 10 different cutting width and angle according to customer's request.
3.Automatic spray silicone oil cooling system,thus the material cutting surface is smooth and beautiful.
4.Servo motor control cutter.
5. Straight line slide track,ball screw and servo motor precisely control to the left and right lateral movement,cutting effectively.
- Product Detail
- Inquiry
Technical data:
Width | 1300mm |
Cutting width | 0.7-1300MM(accprding to the material) |
Maximum cutting diameter | 180mm |
Maximum cutting speed | 34 cuts/min |
Inner Size of Paper core | 76.2MM |
Speed of turnable | 300-1800RPM |
Tolerance | ±0.1MM |
Blade | 250MM |
Thickness of machine frame | 3030 X 1660 X 1690MM |
Voltage | 220V/380V/415V |
Power | 4KW |
Dimension | 2300 X 1400 X1500 MM |
