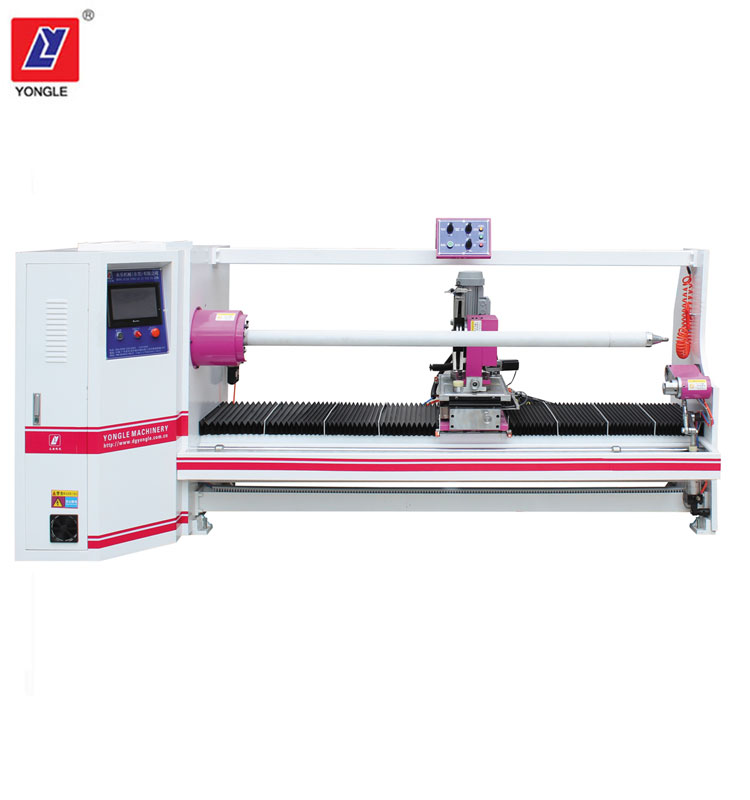

YL-701 Fully Automatic Single Shaft Cutting Machine



Features:
1.PLC control system and touch screen,easy to operate for every workers,also improves the quality of finished product.

2.Can set 10 different cutting width and angle according to customer's request.
3.Automatic spray silicone oil cooling system,thus the material cutting surface is smooth and beautiful.
4.Servo motor control cutter.
5. Straight line slide track,ball screw and servo motor precisely control to the left and right lateral movement,cutting effectively.

  • Product Detail
  • Inquiry
Width 1300mm
Cutting width0.7-1300MM(accprding to the material)
Maximum cutting diameter300mm
Maximum cutting speed 34 cuts/min
 Inner Size of Paper core 76.2MM
Speed of turnable 300-1800RPM
Tolerance±0.1MM
Blade 300MM
Thickness of machine frame 2910 X 1308 X 1507MM
 Voltage 220V/380V/415V
 Power 4KW
 Dimension 3000 X 1380 X1600 MM
