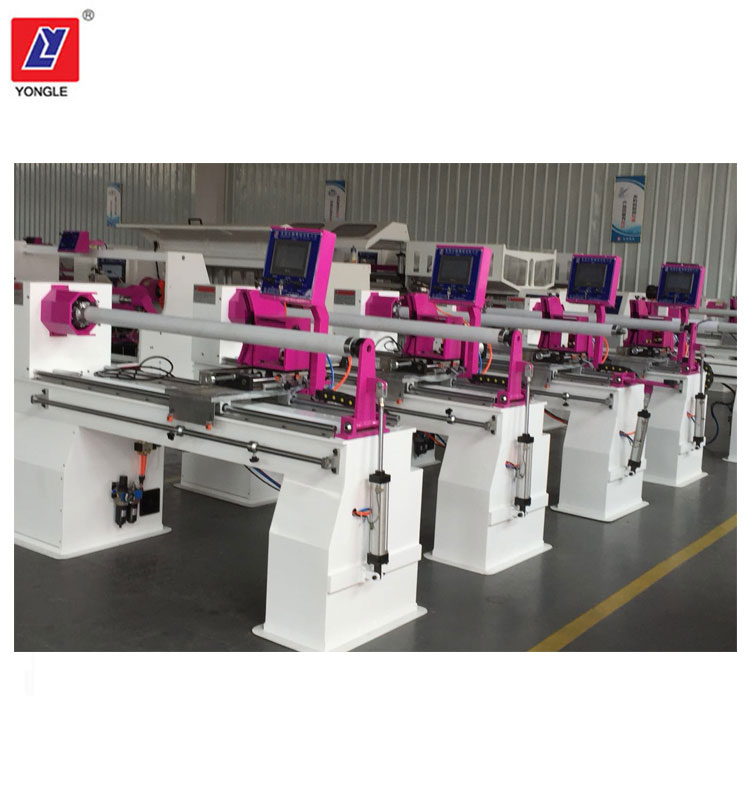

YL-709 Simple auto cutting machine

Application:This machine is mainly for cutting electrical adhesive tape, PVC , OPP, masking tape,Double sided tape, Foam tape etc.
Features:
1.PLC control system and touch screen,easy to operate for every workers,also improves the quality of finished product.
2.Can set 10 different cutting width  according to customer's request.

3.Automatic spray silicone oil cooling system,thus the material cutting surface is smooth and beautiful.

4.Servo motor working with high precision ball screw shaft to precisely control the cutting width.

  • Product Detail
  • Inquiry

Technical data:

Width 1300mm
Cutting width0.7-1300MM(accprding to the material)
Maximum cutting diameter10mm
Maximum cutting speed 34 cuts/min
 Inner Size of Paper core 76.2MM
Speed of turnable 300-1800RPM
Tolerance±0.1MM
Blade 250MM
Thickness of machine frame30mm
 Voltage 220V/380V/415V
 Power 1.5KW
 Dimension 2300 X 1400 X1500 MM
