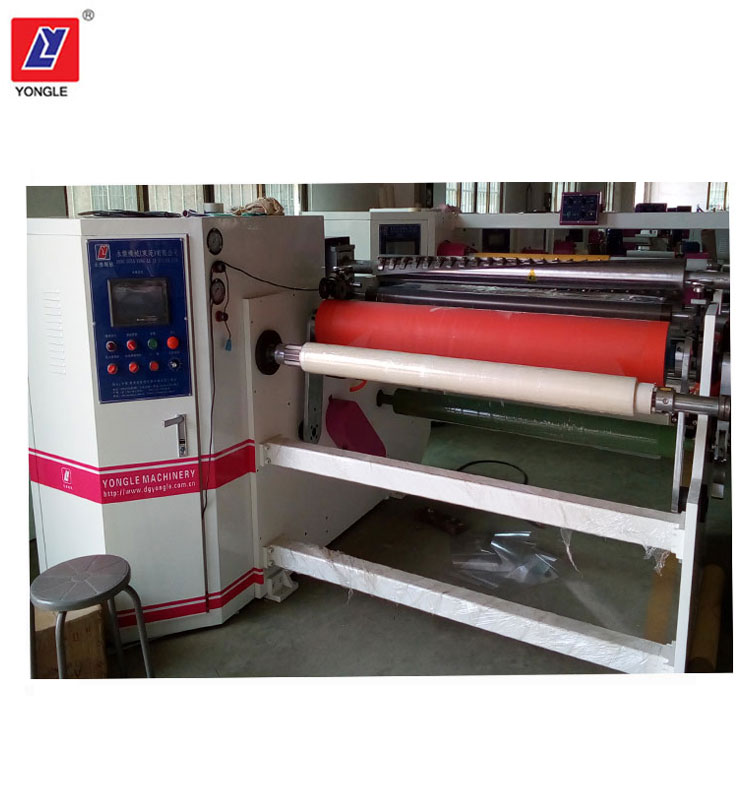

YL-608 Perforating Machine
Application: This machine is suitable for perforating PE Protective film,non-woven fabric,adhesive film etc.
Features:
1. PLC programming, touch screen and manual interface centralized control.
2. Adopt automatic length counter, servo-motor control the precision and auto tension, rewunding material neatly.
3. Machine with air expansion unwinding shaft, easlily for loading the materil roll a nd highly improves the working efficiency
- Product Detail
- Inquiry
Technical data:
Width
1300mm
Unwind O.D
800MM
Rewind O.D
300MM
Inner Size of Paper core
32-76.2MM
Voltage
220V/380V/415V
Power
6KW
Speed
0-80M/MIN
