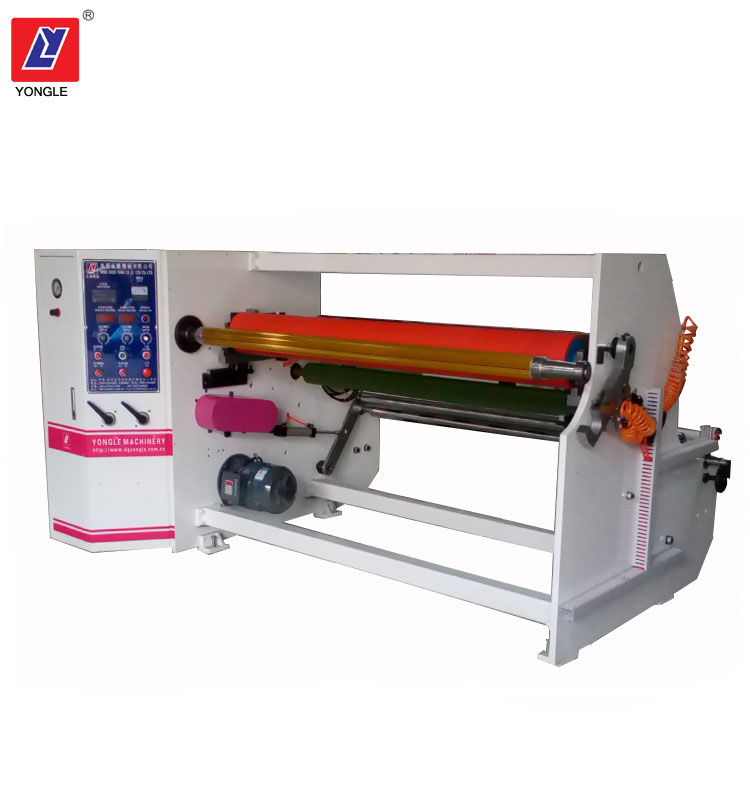

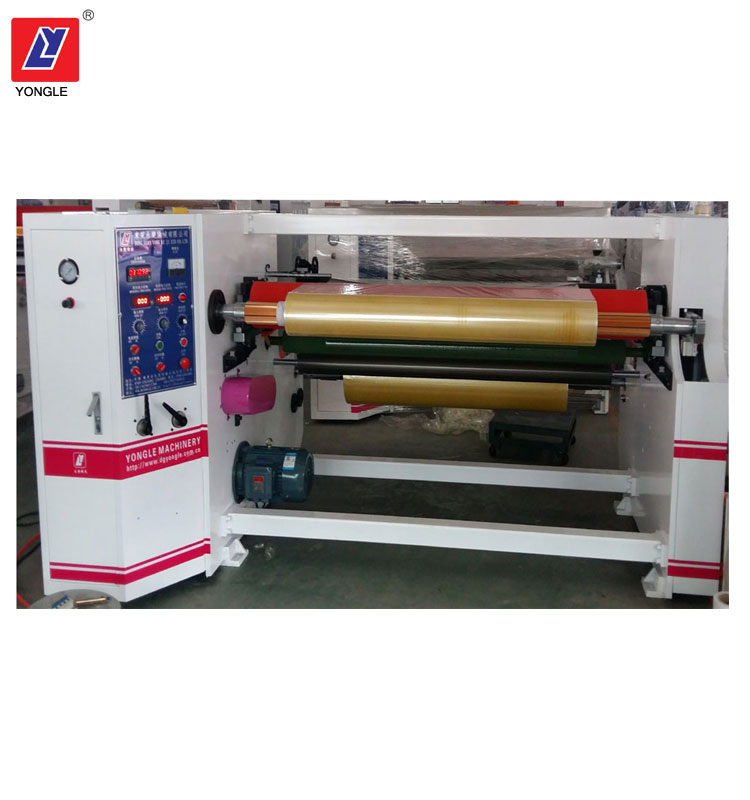

YL-808 Multi Function Rewinding Machine

Application:This machine is mainly for rewinding BOPP, PE Film, double sided tape,masking tape, duct tape etc.


Features:
1. Two section  of the lenghth counter, rewinding the length of the material accurate.
2.The pneumatic silicone pressure roller ensure the finished product without air bubble and high quality,worker easily operate the machine.
3. The traction roller adopts arch flatted roller to elimate the wrinkling  during the transient process.
4. With air expansion rewinding shaft, convient for worker to loading and unloading the paper core and the finished roll.
5.Rewinding part with magetic powder tension control, easy to operate.
6.  Using the inverter to adjust the speed, ensure the machine steadily when improve the speed.


  • Product Detail
  • Inquiry

Technical data:

Width 1300mm/1600mm
 Unwind O.D 600MM
 Rewind O.D300mm
 Inner Size of Paper core 76.2MM
 Voltage 220V/380V/415V
 Power 2.2KW
 Speed 0-80M/MIN
 Dimension 2550 X 1510 X1350 MM
