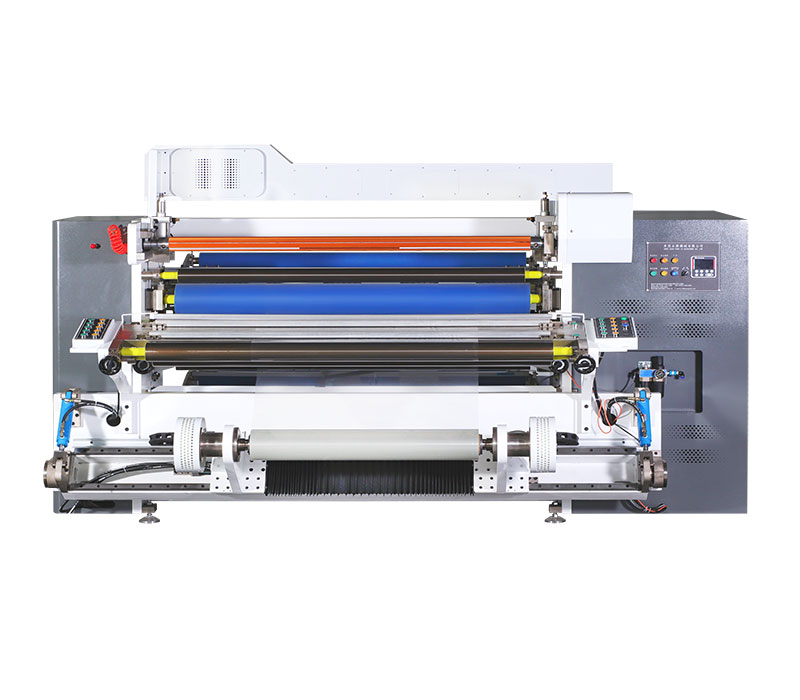

YL-503 High Speed Precision Slitting Machine
Application: This machine is suitable for slitting and rewinding various non-adhesive film, such as release film, label,PET,PE, Aluminum foil, paper etc material.
Features:
1.Adopt centralized PLC touch screen control, volume parameters can be set directly on the touch screen, and self-detection system can be used.
2. The two motors are combined with the main motor as three motors coordinated control system, the high-speed synchronous belt turns, the rewinding tension is stable, and the finished product appearance is smoothly and neatly.
3.Rewinding part with the slip-type shaft.
Features:
1.Adopt centralized PLC touch screen control, volume parameters can be set directly on the touch screen, and self-detection system can be used.
2. The two motors are combined with the main motor as three motors coordinated control system, the high-speed synchronous belt turns, the rewinding tension is stable, and the finished product appearance is smoothly and neatly.
3.Rewinding part with the slip-type shaft.
- Product Detail
- Inquiry
Technical data:
| Width | 650/1300/1600mm |
| Unwind O.D | 800MM |
| Rewind O.D | 400MM |
| Minimum Slitting width | 25MM |
| Inner Size of Paper core | 76.2MM |
| Voltage | 220V/380V/415V |
| Traction roller | 180MM |
| Diameter of pressure roller | 160MM |
| Power | 4KW |
| Speed | 0-80M/MIN |
| Dimension | 1980 X 2200 X1400 MM |
